First of all thank the pound for the exchange rate fluctuations, let me start with the benefits. Thanks for breaking news.
Then despise the Merchants Bank, and when they are accounted for, they simply translate more and more into my account.
Ps, be the first sun in this model, do not know if it will be more cute little gold coins.
.................................................. .................................................. .................................................. ............................
From the headNAS (Network Attached Storage) is literally a device that is connected to a network and has a data storage function. Therefore, it is also referred to as “network storage.†In fact, for me, what I hope for is a low-power, cost-acceptable, and feature-rich storage device.
Previously, the family had always put a four-disc black dress, tossing to feel tired not love. Then bought a group Hui 216+II, but it was not enough. Already hung in free time, the required cheese can support me back to the blood. There are three nas+one black groups at home. His wife's face has been very difficult to read.
The four-disc position has always wanted to start 916+, but unfortunately missed the event, the current price is more painful. It is relatively simple to think about it and think about its own needs. In fact, Weitong Unicom is equally capable of satisfying. So do some homework and prepare to buy TS-453pro. One day, I read Zhang Aunt and found TS-453A. Stronger performance, but the price is not much difference. Ever since, pay attention. Taking advantage of the timing of the Brexit’s departure from the United Kingdom, Indo-Asia succeeded in picking up the hand. Compared to the price of Jingdong 5680, it is quite worthwhile. Another thing is that TS-453PRO has some advantages over TS-453A, and 453A is not an upgraded version of 453PRO.
It took more than ten days on the road.
About QNAP brand:
Model: QNAP TS-453A NAS Network Storage
Size 177 × 180 × 235mm, positioned in enterprise-class network storage.
QNAP has made this product a multi-faceted machine capable of doing a lot of work. The interface is very rich, let me unexpectedly actually support karaoke. However, I only need it to be a handsome machine that loves to store. For others, let's temporarily let go. I think that the simple storage NAS at home does not need a very powerful processor, and there are not many concurrent situations for home use. Because nplay exists, there is little demand for transcoding. Basically lost in the cabinet, it will not let it connect to the TV, video playback is also lost to the player or TV box. So, privately think N3150 is enough to support my use for several years.
Out of the box When you come across the ocean, you will inevitably bump all sorts of bumps along the way. So when I got to the corner, I saw a corner in the box. I was still mentally awkward: It wouldn't hang inside! So demanding inspections out of the box, the courier is also very refreshing. Neatly opened to me. There is a buffer of rough paper, nas packaging a corner to a little pressure marks. After opening, it is still intact. So happy to bring home. Another saying, Amazon shipped abroad, after entering the customs does not send to China's Amazon delivery. In the local area, it is transferred to the wind, but fortunately the dispatch efficiency is not bad.
Very small box, you can see a corner to make a mark. However, there is no problem with it. Looking at this result, I think it would be wise to not go to the sea to scramble the hard disk.
Internal protection is still in place, very thick foam material.
List of hosts and accessories
The network cable sent two, work very well. It is much better than the NETGEAR ASUS router. It is estimated that NAS profits are too rich, and manufacturers feel that they have to be polite.
Imperial plug with insurance. Fortunately, there are many roots in my home power line. So don't have to convert the head.
Remote control, relatively simple. The remote control is indispensable because the player comes with an entertainment player. Of course the app can also be used for control.
Instructions and a pack of screws, because Weitong Unicom is not using screws to install hard drives. So we have to screw one by one.
The drawing shows the extraction of hard disk cartridges and the installation of 2.5-inch and 3.5-inch hard disks.
The power is big and the weight is not small. After all, power is here. The Taiwanese company Quanhan produces very good quality. Taiwanese people like to find Taiwanese suppliers.
Vacant body weight is not small, the aluminum structure is very good. It looks like there is a grade.
Unlike most NAS products, it also provides a "cloud-based installation" method that allows you to use a smart phone or tablet with Internet access even if you do not have a computer. Start.qnap.com website, and then enter the "Cloud Key" above the machine, you can still connect QNAP TS-453A to install the NAS system.
Front and back photos. Four positions, front USB3.0 interface, quick copy button, power button. And LCD screen operation buttons, three led system indicator. In addition, each hard disk has a corresponding hard disk indicator.
As you can see, the interface is still very rich. Three USB3.0, dual HDMI, four network ports, 3.5 output + dual 6.3 input, called ultra-luxury configuration. Also with a keyhole. (2 x HDMI, maximum support 4K 2160P Ultra HD output)
The edge of the structure is also handled well, and the foot pad is very thick.
Side vents, or metal material texture.
QNAP's tray is estimated to be a bit stuck due to the metal material, but it does not prevent me from enjoying it. However, it is still a little inconvenient to install screws. Western Digital 4T red disk, nothing to say, local tyrants generally buy a dozen, I am poor, exhausted the small vault can only buy one. The other three were filled with Seagate 2T.
Synology's tool-free installation is more convenient. Although the plastic tray has reduced the forcing, it is still lubricated in and out. Keke, some people do not want to start thinking!
Four places, finally satisfied.
Pallet work is still good, the thickness of the material is also ok. Not thin.
The details also withstand the picky.
The tray is locked in the top slot using the corners to complete the lock.
The internal interface of the hard disk drive is connected to the motherboard through a slot. The screws are tamper-proof, and they are on all the screws of the machine.
After so much, you have to take a look at it. The shell removal is very simple, and the four fastening screws at the back can be removed. Hold down the shell and pull it backwards. It is the same as Qiao Sibo's most itx chassis.

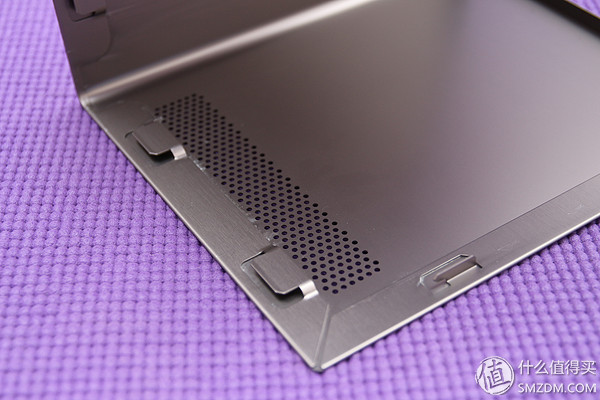

All of them were curled and the thickness of the class was solid. Without a ruler at hand, no specific thickness was measured. The anode casing feels comfortable.
Skeleton is thick, as can be seen from the vacant position, QNAP should have a number of models using this structure. The common main structure objective is achieved through different hardware configurations and different front panel.
Motherboard, with insulating film. 22G memory, supplier is Transcend. DDR3 1600 specifications. There is an opening in the film and the memory supports its own replacement and expansion. However, I am not ready to add it again. 4G is enough. There is a fragile sticker on the screw and I won't split it. Because the warranty can find Amazon.
Ethernet controller from intel, single port 1Gb, there are two on both sides of the motherboard.
Look at the beauty of the metallic luster.
iTE IT8528E, the EC chip produced by Lianyang. Mainly used to control the boot timing, fan control, system standby, hibernation and so on. It is common on laptops and other devices.
Display panel. US Microchip Technology PIC16F73-I/SO, 28-pin 8-bit microprocessor.
Audio panel, no accident, crab home program. The other two chips that are visible are the AMS1117 low dropout linear regulator and ON Semiconductor NCS2007 bandwidth operational amplifier.
Hiding under the heat sink is the Celeron N3150 processor. Because of the low power consumption, the heat sink area is also small.
The official data is subject to the N3150 is based on the Airmont architecture Braswell series cpu, with 1.6G frequency, Turbo frequency up to 2.08G. In the GPU section, 12 EU units are known, and the frequency is 320-640 MHz. Power consumption is good and the thermal design power consumption is only 6W. There is no problem in supporting HD playback.
DOM card, 512MB, Apacer custom. Plug directly into the slot for easy access and replacement.
12CM quiet fan, the measured sound is very small. Whether the temperature control is not known, because no standard, so the manufacturers are ominous.
Do not dare to break the warranty sticker, so the dismantling will stop here. Next I will do a fuller software and hardware application experience. Stay tuned!
